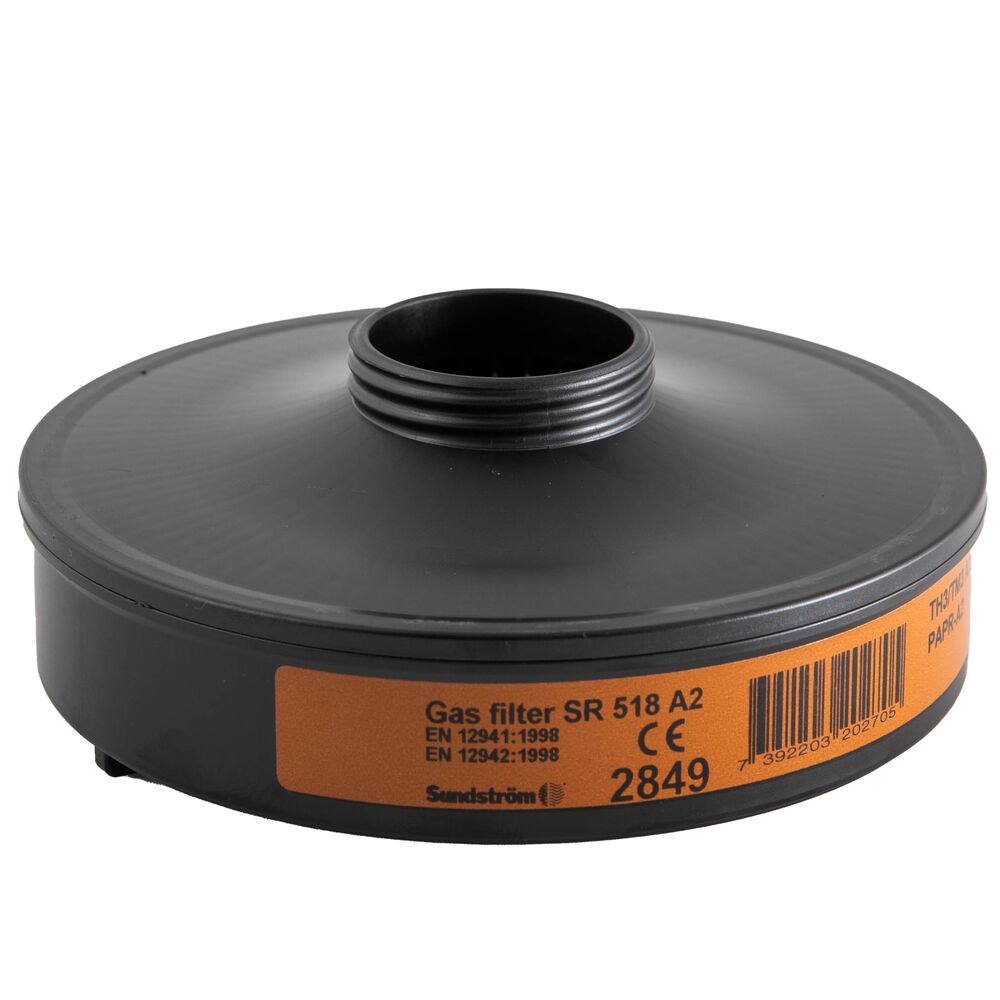

Sundstrøm SR-518 A2 gas filter for SR-500 turbo

The Sundstrøm SR-518 A2 gas filter for the SR-500 turbo is the perfect tool to protect you from harmful organic gases and vapors, such as solvents that have boiling points above 65 °C. This gas filter is designed especially for use in combination with the SR 500/SR 500 EX ventilator and must always be used together with two particle filters or two combined filters consisting of both gas filter and particle filter.

The gas filter is individually wrapped in a bag, which maintains its effectiveness and ensures that it is ready to use when you need it. It also meets the EN14387 standard for protection against organic vapors and solvents. To achieve the best possible protection, it is recommended to use this gas filter in combination with the Sundstrøm particle filter SR-510, which must be placed on top of the gas filter.

The gas filter is based on activated carbon, which has a huge surface area. Just 1 gram of activated carbon has a surface of 1200 m2. This enables the gas filter to adsorb the gases effectively without affecting your breathing resistance. To choose the right class of gas filter, you need to take into account the amount of activated carbon in the filter. The service life of the gas filter can be calculated when you know the concentration of pollution, your air requirement and the capacity of the filter. However, this calculation is associated with uncertainty due to the many variables involved.

It is important to note that when the gas filter begins to reach its capacity, the leakage will gradually increase. Therefore, the filter must be replaced before the leakage occurs. You should not wait to replace the filter until you notice an odor, as the contamination must not be smellable. To ensure that you always replace the filter on time, it is recommended to establish regular routines based on your own experience.

Be aware that gas filters do not protect against particles or lack of oxygen. They are only effective against organic vapors and solvents. Therefore, it is important to use this gas filter in combination with a particle filter in the right situations to achieve the best possible protection.

With the Sundstrøm SR-518 A2 gas filter, you can be sure that you are protecting yourself from harmful organic gases and vapors while working with the SR 500/SR 500 EX fan. Its effective adsorption properties and ease of use make it the ideal choice for anyone who wants to work safely and healthily.

• Individually wrapped in bag.
• Field of application:
• Organic vapors and solvents
• EN14387


Sundstrøm Gas filter SR-518 must be used in combination with Sundstrøm particle filter SR-510.
The particle filter is pressed firmly on top of the gas filter.

Fits to:

Sundstrøm SR-500
Sundstrøm SR-500 EX

Field of application:

Organic vapors and solvents

GAS FILTERS:

Consists of activated carbon that has a very large surface area. 1 gram has a surface of 1200 m2.
The gases are adsorbed by the activated carbon, without it being possible to register any appreciable ones
change in breathing resistance. A gas filter has a certain capacity depending on the contained quantity
coal (class 1, 2 or 3). The service life of the gas filter can be calculated when the contamination is known
concentration, the user's air demand and the capacity of the filter.
However, the calculation is associated with great uncertainty, as many variables are included.
When the filter is about to be used up, the leakage gradually increases.
The filter must be replaced before the leak occurs.
The pollution must not be smelled, and the filter must be replaced at the latest when odors are detected again.
To ensure that replacement takes place on time, you should draw up some fixed routines based on your experience.
Gas filters are ineffective against particles and lack of oxygen.
